These are homemade Walkie Talkies that I’ve made myself. They work with a direct wifi connection using ESP32 and ESP now connection and they are fully programmed in Arduino code. I’m sharing the PCB files, the part list, the 3D files and the code below if you also want to make such a project. So guys, this should be fun and it all started with the PCB so lt’s get started
by: Rick Sanchez on 2026-06-13

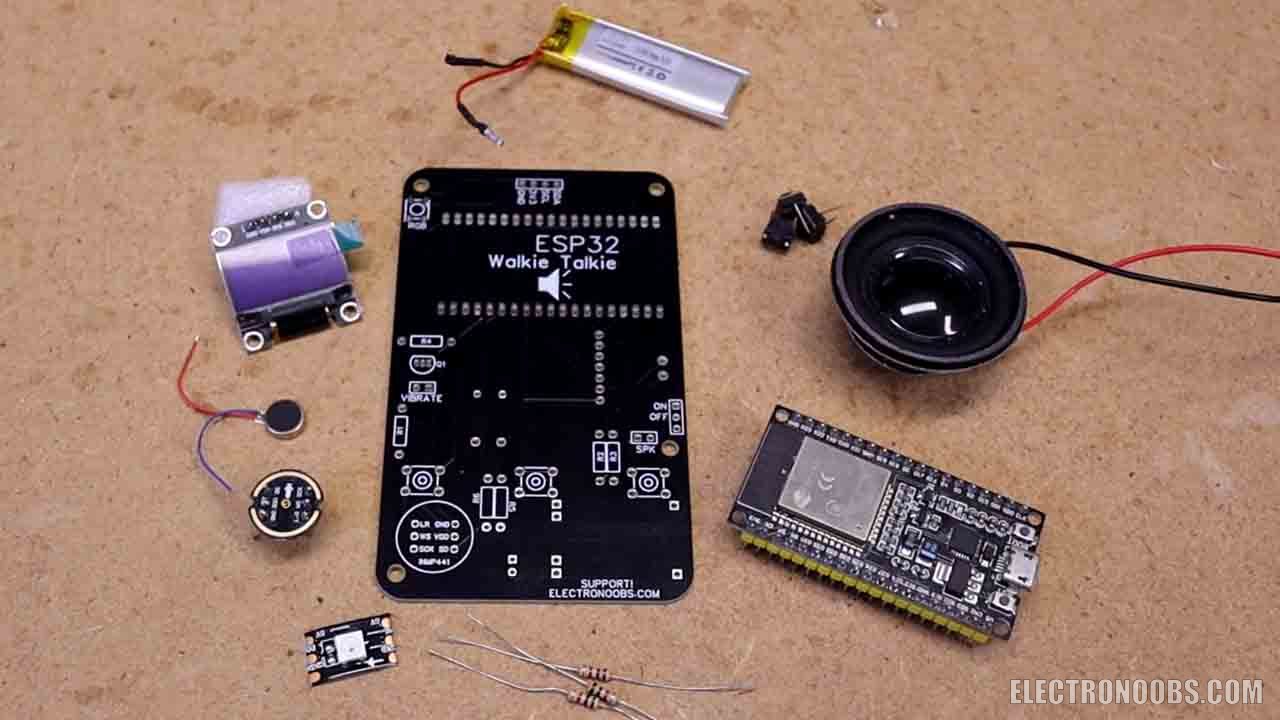

Let's see what parts I've used first for the prototype and once the new PCB is ready I will share a different part list. The new PCB might use a SMD ESP32 version with on board connector for an external antenna for better range. Then we can see the scheamtic, the PCB and finally the code with a new menu and extra stuff. Check below all parts listed in the update video and some components might be different if you want. Together with the part list you will need the 3D printed case, some wires, screws, etc.
- PCB GERBERs: Download GERBERs
- 3D Case STL: Download STLs
- 2 x ESP32 Dev Module 38 pins LINK Aliexpress
- 2 x INMP441 Microphone Download STL Files (previous version 27/07/2024)
- 2 x MAX98357A DAC: LINK Aliexpress
- 2 x 8 ohm speaker: LINK Aliexpress
- 2 x TP4056 1S charger: LINK Aliexpress
- 2 x 3.7V LiPo battery: LINK Aliexpress
- 2 x OLED i2c display: LINK Aliexpress
- 6 x Push button: LINK Aliexpress
- 2 x vibration motor: LINK Aliexpress
- 2 x ws2812b LEDs: LINK Aliexpress
- 2 x 2N2222 BJT transistors: LINK Aliexpress
- 1/4W resistors (check schematic for values): LINK Aliexpress
- female and male pins, screw connectors, wires, etc.

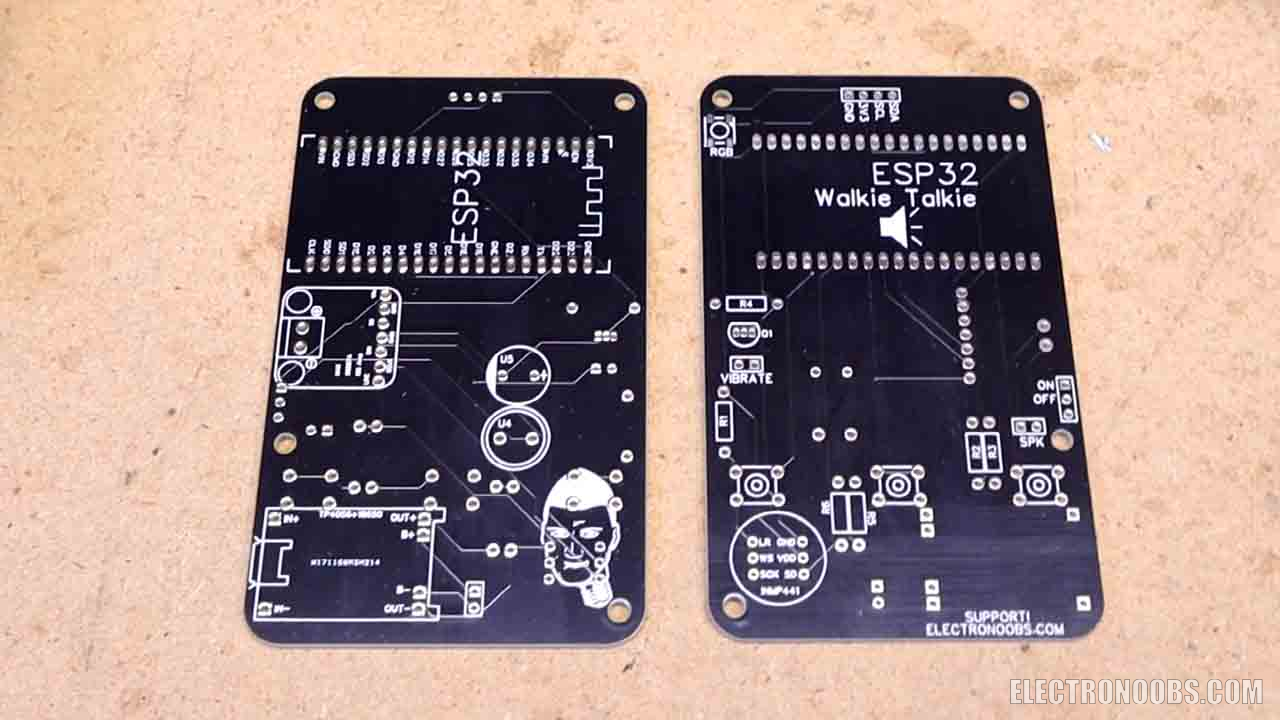

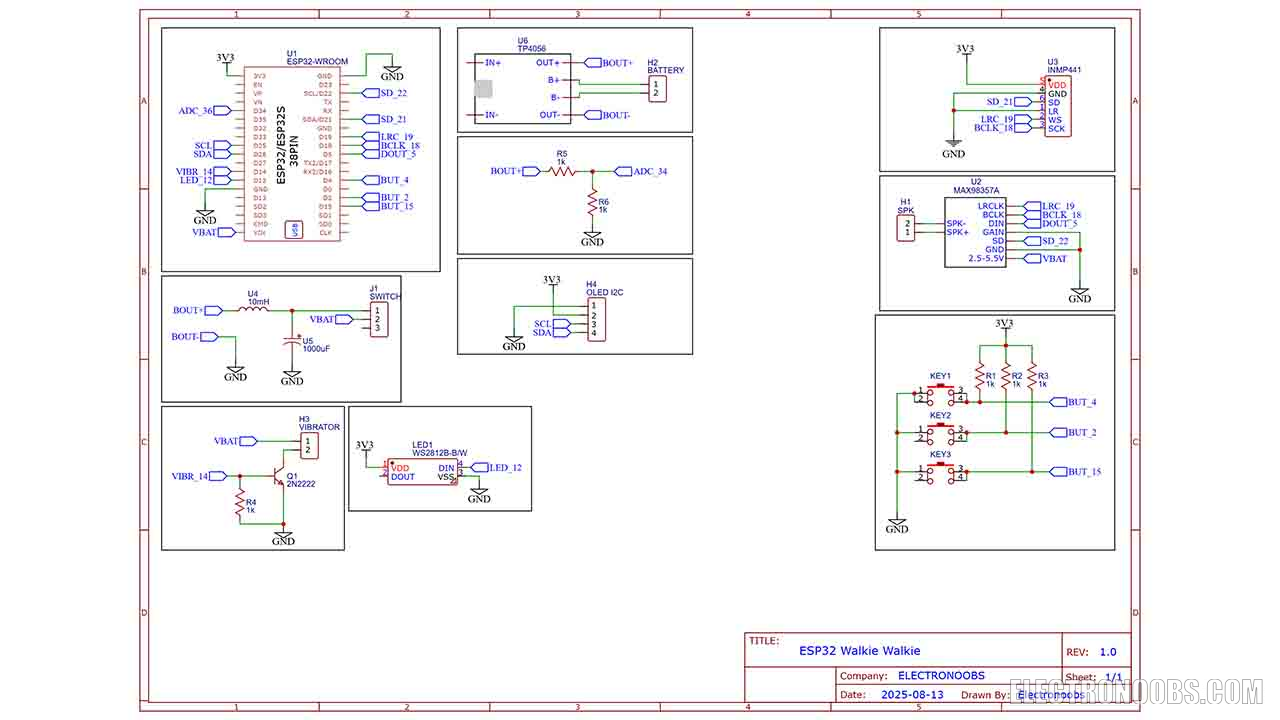

The schematic is simple, just connections to the components and modules. In the future I will make the PCB a los smaller but for now is good as a prototype.
I wanted to make a programmed walkie talkie for a long time and I’ve finally made it, and if you want to also replicate this project, download my GERBER files from below for free as always. Go to PCBWAY.com and click the quote now button. Here we add the size of my PCB and also select a color. I’ve selected the black one. Save to cart and on the next page upload the GERBER files you’ve downloaded and make the order. For only 5 dollars you can get 10 great PCBs for your prototypes and cool projects. In a few days I received my PCBs and I was ready for my walkie talkie.
My PCB has a small vibrating motor and RGB LED for notifications, it could have single channel or broadcast mode, it has an OLED display to show any value you want and with an ESP32, you can always go further and involve IOT or any other internet related plugin. Imagine a walkie talkie with internet.
Now I have two so I’ve also designed a case and 3D printed it. The case is simple, it has space for the USB inputs, the switch, the OLED display and the push buttons. The 3D printed design already has flexible buttons that will touch the buttons on the PCB. It has this nice finish because I’ve used my hologram printing bed with my 3D printer. They look ok.
So once we have the PCB and the case, get the USB cable and upload the final code, which by the way let’s check it out real quick. Include all the libraries which if you don’t have, check the links for the download. Define the OLED display settings. Define all the inputs and outputs to be the same as on the schematic. If this variable is set to true, broadcast mode is activated, meaning the ESPNOW protocol uses the default broadcast MAC which is this one, an array of 6 double FF in hexadecimal and with this, all the ESPs that are around will receive the audio at the same time. We can also use specific channels for private communication and to get the MAC of your ESP32 device, use this wifi.MAC address function. Actually, I’me made the code to print on the OLED screen the MAC address so you could just copy that. The entire code has comments so read them for more details. We make a function to configure the I2S for the microphone. Then another function for the i2S of the DAC. This function sets the receiver MAC. This function runs each time we receive a new data using ESPNOW and gets the received bytes and sends them to the DAC using i2S write. In the void loop, each time the push button is pressed, we stop the DAC and start the microphone and using I2S we get the sound from the module and send it using ESPNOW using this line here. And that’s it for the first draft of the prototype code. Obviously, now that I know it works, I can work on making a menu on the OLED display, making automatic pairing, different channel selector, making vibration and LED notifications and maybe also adding encryption but that’s for a future update.
/* Electronoobs ESP32 Walkie Talkie V1.1 (05/10/2025)
Check tutorial on: https://electronoobs.com/eng_arduino_tut202.php
Download PCB and schematic from the same page
Make changes as you want!
Consider supporting me on PATREON: https://www.patreon.com/electronoobs */
//Include libraries
#include <WiFi.h>
#include <esp_now.h>
#include <driver/i2s.h>
#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <Adafruit_NeoPixel.h>
//Define OLED screen
#define OLED_RESET -1 // Reset pin # (or -1 if sharing Arduino reset pin)
#define SCREEN_ADDRESS 0x3C ///< See datasheet for Address; 0x3D for 128x64, 0x3C for 128x32
Adafruit_SSD1306 display(128, 32, &Wire, OLED_RESET);
//Inputs and outputs
#define I2S_WS 19 // L/R clock for INMP441 i2s microphone module
#define I2S_SCK 18 // BCLK for INMP441 i2s microphone module
#define I2S_SD 21 // Data out from INMP441 i2s microphone module
#define I2S_DOUT 5 // Data out pin for the MAX98357A i2s amplifier
#define LeftBut 4 // Left push button on the electronoobs PCB
#define MiddleBut 2 // Middle push button on the electronoobs PCB
#define RightBut 15 // Right push button on the electronoobs PCB
#define Vibrate 14 // Pin connected to vibrate driver on electronoobs PCB
#define Batery 34 // ADC pin to measure battery level (divider values R5=3.3K and R6=1K)
#define i2cSCL 25 // Defined pin for SCL of i2c port for OLED display
#define i2cSDA 26 // Defined pin for SDA of i2c port for OLED display
#define RBGLED 12 // WS2812B RBG LED connected on this pin
//Define WS2812B RGB LED settings
Adafruit_NeoPixel pixels(1, RBGLED, NEO_GRB + NEO_KHZ800);
//Code EDITABLE Varaiables
bool broadcast_mode = true; //If broadcast mode is on, all the devices on the network will receive the message
//To get the ESP32 MAC run this line: Serial.println(WiFi.macAddress());
uint8_t BroadcastMac[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF}; // Receiver MAC address (replace with your receiver's MAC)
//uint8_t receiverMac[] = {0x78, 0x42, 0x1C, 0x6C, 0xCD, 0x18}; // Receiver MAC address (replace with your receiver's MAC)
//uint8_t receiverMac[] = {0x3C, 0x8A, 0x1F, 0x5E, 0xA1, 0x35}; // ESP on breadboard for tests
uint8_t receiverMac[] = {0xB4, 0xE6, 0x2D, 0xB7, 0x49, 0x1D}; // ESP second PCB
const int GAIN = 5; // Software microphone gain multiplier (values 1-20 recommended)
const i2s_port_t I2S_SPEAKER_PORT = I2S_NUM_0; //I2S channel 0 for the speaker amplifier
const i2s_port_t I2S_MIC_PORT = I2S_NUM_1; //I2S channel 1 for the microphone
//Code CONSTANT Variables
bool LeftButState = true; //Start with buttons state to high since it has pullup
bool MiddleButState = true; //Start with buttons state to high since it has pullup
bool RightButState = true; //Start with buttons state to high since it has pullup
bool sending = false; //We start with sending mode off till we push the button
esp_err_t err; //Variable to store the i2s errors in case we have one...
/////////////////////////////////////////////////////////////////
///////////////////SETUP THE MICROPGONE I2S//////////////////////
void setupI2SMic() {
const i2s_config_t i2s_config_mic = {
.mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX),
.sample_rate = 16000,
.bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
.channel_format = I2S_CHANNEL_FMT_ONLY_LEFT,
.communication_format = I2S_COMM_FORMAT_I2S_MSB,
.intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
.dma_buf_count = 4,
.dma_buf_len = 128,
.use_apll = false,
.tx_desc_auto_clear = false,
.fixed_mclk = 0
};
const i2s_pin_config_t pin_config_mic = {
.bck_io_num = I2S_SCK,
.ws_io_num = I2S_WS,
.data_out_num = I2S_PIN_NO_CHANGE,
.data_in_num = I2S_SD
};
err = i2s_driver_install(I2S_MIC_PORT, &i2s_config_mic, 0, NULL);
if (err != ESP_OK) {
Serial.printf("Failed installing Microphone driver: %d\n", err);
}
err = i2s_set_pin(I2S_MIC_PORT, &pin_config_mic);
if (err != ESP_OK) {
Serial.printf("Failed setting microphone pins: %d\n", err);
}
i2s_zero_dma_buffer(I2S_MIC_PORT);
}
/////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////
////////////////////SETUP THE AMPLIFIER I2S//////////////////////
void setupI2SAmplifier() {
const i2s_config_t i2s_config_speaker = {
.mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_TX),
.sample_rate = 16000,
.bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
.channel_format = I2S_CHANNEL_FMT_ONLY_LEFT,
.communication_format = I2S_COMM_FORMAT_I2S_MSB,
.intr_alloc_flags = 0,
.dma_buf_count = 8,
.dma_buf_len = 64,
.use_apll = false,
.tx_desc_auto_clear = true,
.fixed_mclk = 0
};
const i2s_pin_config_t pin_config_speaker = {
.bck_io_num = I2S_SCK,
.ws_io_num = I2S_WS,
.data_out_num = I2S_DOUT,
.data_in_num = I2S_PIN_NO_CHANGE
};
err = i2s_driver_install(I2S_SPEAKER_PORT, &i2s_config_speaker, 0, NULL);
if (err != ESP_OK) {
Serial.printf("Failed installing Amplifier driver: %d\n", err);
}
err = i2s_set_pin(I2S_SPEAKER_PORT, &pin_config_speaker);
if (err != ESP_OK) {
Serial.printf("Failed setting speaker pins: %d\n", err);
}
i2s_zero_dma_buffer(I2S_SPEAKER_PORT);
}
/////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////
/////////////////////SETUP OTHER RECEIVERS///////////////////////
void setPeer (){
esp_now_peer_info_t peerInfo = {};
memcpy(peerInfo.peer_addr, receiverMac, 6);
peerInfo.channel = 0;
peerInfo.encrypt = false;
if (esp_now_add_peer(&peerInfo) != ESP_OK) {
Serial.println("Failed to add peer");
return;
}
}
/////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////
//////////WHAT HAPPENS WHEN WE RECEIVE DATA WITH ESPNOW//////////
void OnDataRecv(const uint8_t *info, const uint8_t *data, int len) {
if (len > 0 && len <= 512 && len % 2 == 0) {
size_t bytes_written;
Serial.println("Received");
if(!sending){
i2s_write(I2S_SPEAKER_PORT, data, len, &bytes_written, portMAX_DELAY);
}
}
}
/////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////
////////////WHAT HAPPENS WHEN WE SEND DATA WITH ESPNOW///////////
void OnDataSent(const uint8_t *mac_addr, esp_now_send_status_t status){
Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Delivery Success" : "Delivery Fail");
}
/////////////////////////////////////////////////////////////////
void setup() {
if(broadcast_mode){
for(int i=0; i<6; i++){
receiverMac[i] = BroadcastMac[i];
}
}
pinMode(LeftBut, INPUT); //Define the left button on the PCB as input (1K pullup on PCB)
pinMode(MiddleBut, INPUT); //Define the middle button on the PCB as input (1K pullup on PCB)
pinMode(RightBut, INPUT); //Define the right button on the PCB as input (1K pullup on PCB)
pinMode(RBGLED, OUTPUT); //Define the pin connected to the LED as output
digitalWrite(RBGLED, LOW); //Start with LED pin in low
pinMode(Vibrate, OUTPUT); //Define the pin connected to the BJT for vibration motor as output
digitalWrite(Vibrate, LOW); //Start the BJT for vibration motor in low
Serial.begin(115200); //Start serial monitor for debug
WiFi.mode(WIFI_STA); //Start wifi mode
//setupI2SMic(); //Setup the i2c microphone with given settings
setupI2SAmplifier(); //Setup the i2c MAX98357A audio amplifier
if (esp_now_init() != ESP_OK) { //Start ESP NOW
Serial.println("ESP-NOW Init Failed");
return;
}
setPeer(); //Set the receiver peer (only 1 for now, multiple channels in the future)
esp_now_register_recv_cb(OnDataRecv); //Start in receiver mode
Wire.setPins(i2cSDA,i2cSCL);
// SSD1306_SWITCHCAPVCC = generate display voltage from 3.3V internally
if(!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1306 allocation failed"));
for(;;); // Don't proceed, loop forever
}
String myMACaddr = WiFi.macAddress();
display.clearDisplay(); // Clear Display
display.setTextSize(1); // Normal 1:1 pixel scale
display.setTextColor(SSD1306_WHITE); // Draw white text
display.setCursor(0,0); // Start at top-left corner
display.println("MAC ADDRESS:"); //
display.println(myMACaddr); // Print my MAC address
display.display(); // Send data to the display
pixels.begin(); // INITIALIZE NeoPixel strip object (REQUIRED)
tone(Vibrate, 2000, 100);
pixels.clear(); // Set all pixel colors to 'off'
pixels.setPixelColor(0, pixels.Color(0, 150, 0));
pixels.show(); // Send the updated pixel colors to the hardware.
delay(300);
pixels.clear(); // Set all pixel colors to 'off'
pixels.show(); // Send the updated pixel colors to the hardware.
tone(Vibrate, 2000, 100);
Serial.println("ELECTRONOOBS Walkie Talkie All Set");
}
void loop() {
/////////////////////////////////////////////////////////////////
////////////WHEN WE PRESS THE RIGHT BUTTON WE SEND AUDIO//////////
if(!digitalRead(RightBut) && RightButState){
RightButState = false;
//esp_now_register_recv_cb(NULL); //Start in receiver mode
setupI2SMic(); //Setup the i2c microphone with given settings
esp_now_register_send_cb(OnDataSent);
//setPeer();
sending = true;
}
if(digitalRead(RightBut) && !RightButState){
setupI2SAmplifier(); //Setup the i2c MAX98357A audio amplifier
esp_now_register_recv_cb(OnDataRecv);
RightButState = true;
sending = false;
}//End of Right button push
/////////////////////////////////////////////////////////////////////
//WHEN "SENDING" VARIABLE IS 1 WE READ MICROPHONE AND SEND THE DATA//
if(sending){
const int samples = 100; // 100 samples x 2 bytes = 200 bytes
int16_t buffer[samples];
size_t bytesRead;
// Read I2S data from mic
i2s_read(I2S_MIC_PORT, &buffer, sizeof(buffer), &bytesRead, portMAX_DELAY);
if (bytesRead > 0) {
// Apply software gain safely
for (int i = 0; i < samples; i++) {
int32_t amplified = buffer[i] * GAIN;
// Clamp to int16_t range to prevent overflow
if (amplified > 32767) amplified = 32767;
if (amplified < -32768) amplified = -32768;
buffer[i] = (int16_t)amplified;
}
// Send audio buffer over ESP-NOW
esp_err_t result = esp_now_send(receiverMac, (uint8_t*)buffer, bytesRead);
//Serial.println(result == ESP_OK ? "Voice sent!" : "Send failed");
}
delay(2); // Light throttle for stability
}//End of "sending"
}//End of void loop
So guys, now that I have the walkie talkie project , I can start working on the programmed door bell intercom and maybe save you some money. I’ll make another update once I have something new related to this project but till then, check the website page for the PCB, the code, the part list and the 3D case for free as always and maybe support me on PATREON for my work.
