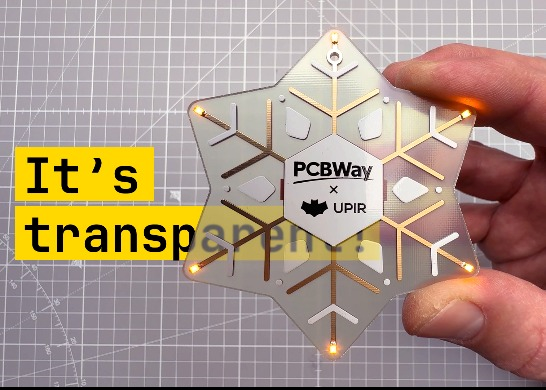

PCBWay has just launched a highly anticipated new service — Transparent Rigid PCBs!

For a long time, transparent rigid PCBs have drawn the attention of makers and engineers due to their unique appearance and practical value. They not only feature high strength and durability but also allow circuits to be displayed clearly, combining both functionality and aesthetics. The distinctive transparent texture adds individuality and creativity to products, making them especially suitable for showcases, educational purposes, and innovative designs.

To meet customer needs, PCBWay accelerated its R&D efforts and recently achieved a breakthrough. Starting today, you can order high-quality transparent rigid PCBs directly from PCBWay!


Here are the detailed specifications of the transparent rigid PCBs:

• Layers: Single, Double, 4-layer, 6-layer
• Base Material: Transparent FR-4
• Board Thickness: 1.0 mm, 1.2 mm, 1.6 mm (customizable)
• Copper Thickness: 1 oz, 2 oz (customizable)
• Trace/Spacing: ≥ 4/4 mil
• Hole/Via Size: ≥ 0.2 mm
• Surface Finishes: Hard Gold Fingers, Electroplated Thick Gold, Electroplated Soft Gold, Immersion Silver, Immersion Tin, ENEPIG, OSP + Electroplated Gold, OSP + Hard Gold Fingers, HASL + Hard Gold Fingers, HASL + Electroplated Gold, etc.

Highlights:

• High-Transparency Substrate: Clearly reveals the internal circuit layout, making the structure of electronic designs visible at a glance.
• Transparent Soldermask Protection: Ensures circuit safety while maintaining overall clarity.
• Customizable Color Silkscreen: Offers personalized colors and patterns to meet diverse design needs.
